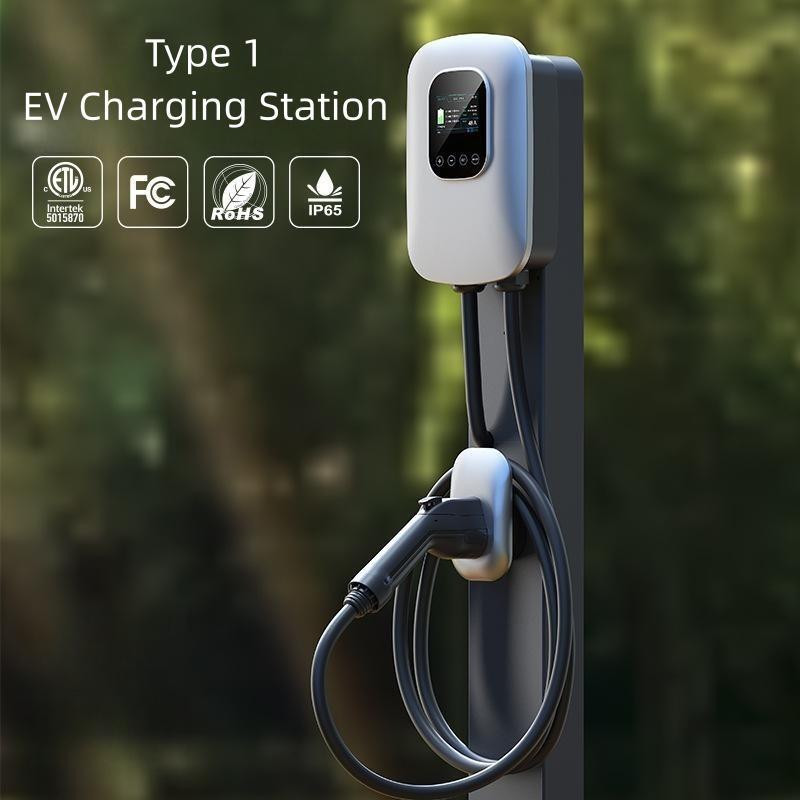

7.4 Meters Cable Column Mounted 11kw Type 1 EV Charger With RFID
Card
Product Description
1. 7.4 Meters Cable Column Mounted 11kw Type 1 EV Charger With RFID
Card comes with a generous 7.4 meters cable length, providing
flexibility and convenience for charging in various parking
configurations.
2. With an impressive 11kw power output, this charger delivers fast
and efficient charging for Type 1 electric vehicles, allowing for
quicker turnaround times.
3. Designed specifically for Type 1 electric vehicles, this charger
offers a reliable and user-friendly charging solution, ensuring
compatibility and ease of use for owners of compatible vehicle
models.
Specification
| Product | 7.4 Meters Cable Column Mounted 11kw Type 1 EV Charger With RFID
Card |
| Model for 40A | RC-EV-096KUS-01C | RC-EV-096KUS-01C | RC-EV-7KEU-01CB |
| Input / Output Voltage | AC 110~240V/ Single phase | Input / Output Current | 8, 10, 12, 14, 16A, 20, 24, 28, 32A, 36A, 40A adjustable |
| Max Output Power | 9.6KW | Frequency | 50/60Hz |
| Input Cable | NEMA 14-50P/ 1M, hard-wired | Output plug | SAE J1772 (Type1) |
| Output Cable | 7.4M | Withstand Voltage | 2000V |
| Work Altitude | <2000M | Stand by | <3W |
| Protection | over voltage protection, over load protection, over-temp
protection, under voltage protection, earth leakage protection,
lightning protection, short circuit protection |
| Touch Button | Yes | LCD Screen | 3.5" |
| Current Adjustment | Yes | Timing / Appointment | Yes |
| Bluetooth APP cherging | Yes(Optional) | WiFi APP cherging | Yes(Optional) |
| RFID | Yes | Certification | FCC, ETL, RoHS |
| Model for 48A | RC-EV-115KUS-01C | RC-EV-115KUS-01C |
| Input / Output Voltage | AC 110~240V/ Single phase | Input / Output Current | 8, 10, 12, 14, 16A, 20, 24, 28, 32A, 36A, 40A adjustable |
| Max Output Power | 11.52KW | Frequency | 50/60Hz |
| Input Cable | NEMA 14-50P/ 1M, hard-wired | Output plug | SAE J1772 (Type1) |
| Output Cable | 7.4M | Withstand Voltage | 2000V |
| Work Altitude | <2000M | Stand by | <3W |
| Protection | over voltage protection, over load protection, over-temp
protection, under voltage protection, earth leakage protection,
lightning protection, short circuit protection |
| Touch Button | Yes | LCD Screen | 3.5" |
| Current Adjustment | Yes | Timing / Appointment | Yes |
| Bluetooth APP cherging | Yes(Optional) | WiFi APP cherging | Yes(Optional) |
| RFID | Yes | Certification | FCC, ETL, RoHS |
Factory Introduction
We are a company specializing in EV charging stations, offering OEM
and ODM services. With 8 years of experience in the field, we are
committed to providing our customers with high-quality and reliable
charging station solutions.
Our team possesses extensive technical expertise and industry
knowledge, enabling us to customize charging station products based
on our customers' specific requirements while ensuring compliance
with the highest standards and regulations.
From design to manufacturing and after-sales service, our primary
focus is customer satisfaction, and we actively contribute to the
advancement of electric vehicle charging infrastructure.
If you are seeking an experienced and trustworthy partner for
customized solutions in the EV charging domain, we are ready to
deliver excellent products and professional support.
Features
1. Universal compatibility - support major charging standards like
CCS, CHAdeMO, GB/T to serve different EVs.
2. High-power DC fast charging - enable ultra-fast charging to
minimize downtime.
3. Smart networking - allow remote monitoring, access control,
payment integration for operators.
4. Customizable - tailored charging solutions designed to customer
specifications.
5. Reliable - rigorously tested to ensure safety and reliable
performance.
6. Intelligent charging - optimize charging through smart
algorithms and V2I connectivity.
7. User-friendly - interactive interfaces with LED/LCD displays,
voice guidance.
8. Eco-conscious - integrate renewable energy sources for
low-carbon charging.
9. End-to-end service - from design, manufacturing to installation
and maintenance.
